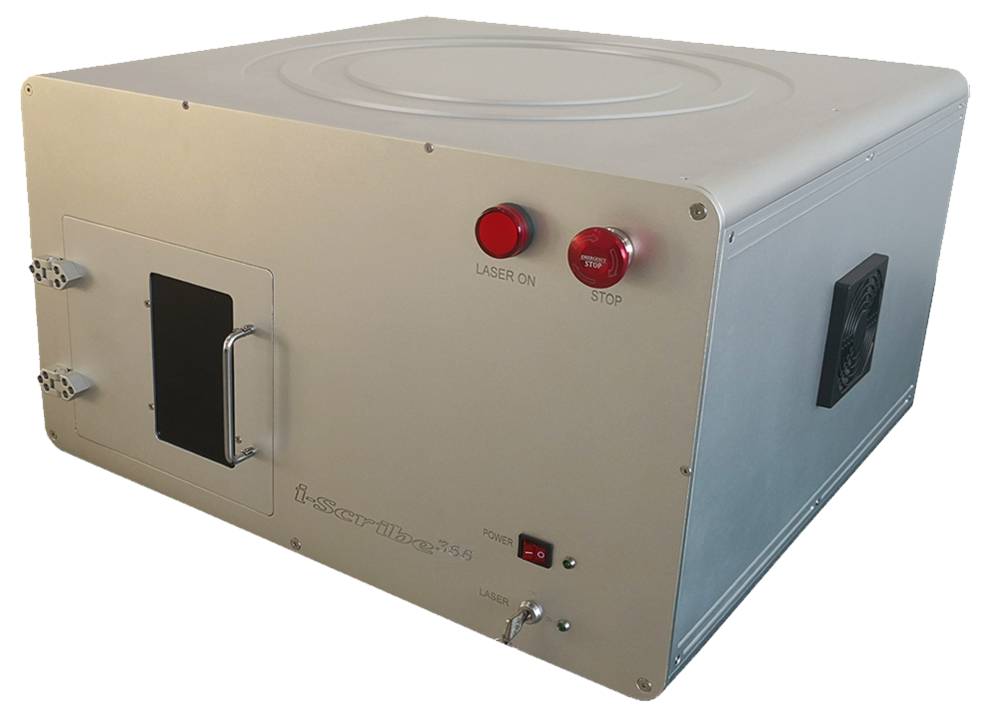

I SCRIBE 355
4 Axis UV Laser
Inscriptions System
Optimized for
Diamonds, Gems &
Hard Materials
White Coating Needed
Polished Diamonds
Faceted Girdles
Polished Tables
Polished Star Facets
No White Coating Needed
Diamonds
Polished Diamonds Bruted Girdles
Rough Diamonds
CVD & HPHT Plates
Others
Moissanite
CZ
Glass
Hard Materials
MCD
PCD
CBN
PCBN
Silicon Carbide
White Coating Needed
Polished Diamonds
Faceted Girdles
Polished Tables
Polished Star Facets
No White Coating Needed
Diamonds
Polished Diamonds Bruted Girdles
Rough Diamonds
CVD & HPHT Plates
Others
Moissanite
CZ
Glass
Hard Materials
MCD
PCD
CBN
PCBN
Silicon Carbide
| 4 Axis Diode Base IR 355nm Laser Inscription System | ||
|---|---|---|
| Laser Inscription System for Diamonds Faceted & Bruted Girdles, Crown Facets, Rough Diamond, Gemstones and Hard Materials with Full Software Package with 4 Magnetic Holders, Power Cable, USB 3.0 Cable, USB 2.0 Cable, Inscription Starter Kit Including Diamond Coating Solution, Diamond Cleaning Liquid with Dispenser and Diamond Cleaning Swabs, 1 Year Warranty including Parts, Labor and Software Development for Proprietary Applications 3 Year IT & Software Support including Software Updates 1-2 Day On Sight Training Available | |
|

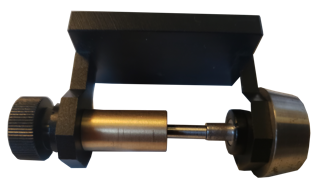

| Standard Size Gemstones Magnetic Inscription Holder |  |
|

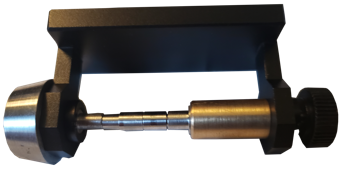

| Large Gemstones, Stud Earrings, Diamond Plates Magnetic Inscription Holder |  |
|

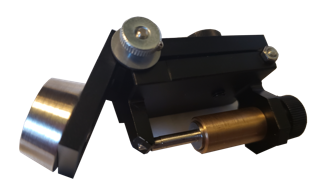

| Gemstones Star Facets and Table Magnetic Inscriptions |  |
|
| Ring Magnetic Inscription Holder for Mounted Gemstones and Actual Metal Inscriptions |
|
|
| Extremely Low Power Consumption |
|---|
| Very Stable Beam quality |
| Fast Inscription Speed compared to other UV or IR Laser Systems in the Market Logo & 10 Digits or Text from 3-6 Seconds Inscription Time |
| Crisp & Clean Inscription Quality Compared to other UV or IR Laser Systems in the Market |
| Most Advanced Inscription Text, Logos & Shapes Software with Editing Inscription Precision Features Compared to other UV or IR Laser Systems in the Market |
| Maintenance Free System |
| Portable System |
| Plug and Play |
| Costume Modifications for Larger Object are Available |
| Diode with Longevity and Stability |
| Laser Source | : Diode Base |
|---|---|
| Wavelength | : 355nm |
| Maximum Inscription Speed | : 1000 Microns Per Second |
| Minimum Inscription Speed | : 10 Microns Per Second |
| Inscription Height Range | : 10 Microns and Larger |
| Input Power | : 110V-240V |
| System Camera | : 5mp USB3.0 |
| System Dimension: | |
| Length | : 19.3" = 490mm |
| Body Depth | : 19.3" = 490mm |
| Height | : 12.6" = 320mm |
| Weight | : 80bs = 35kg |
| CPU Requirements: | |
| Desktop or Laptop | : 6th Generation or Better I7 Quad-Core Windows 10 with a Minimum of 1xUSB2.0 & 1xUSB3.0 |
| Screen Resolution | : Full HD= 1920 x 1080 to 4K= 3840 x 2160 |
