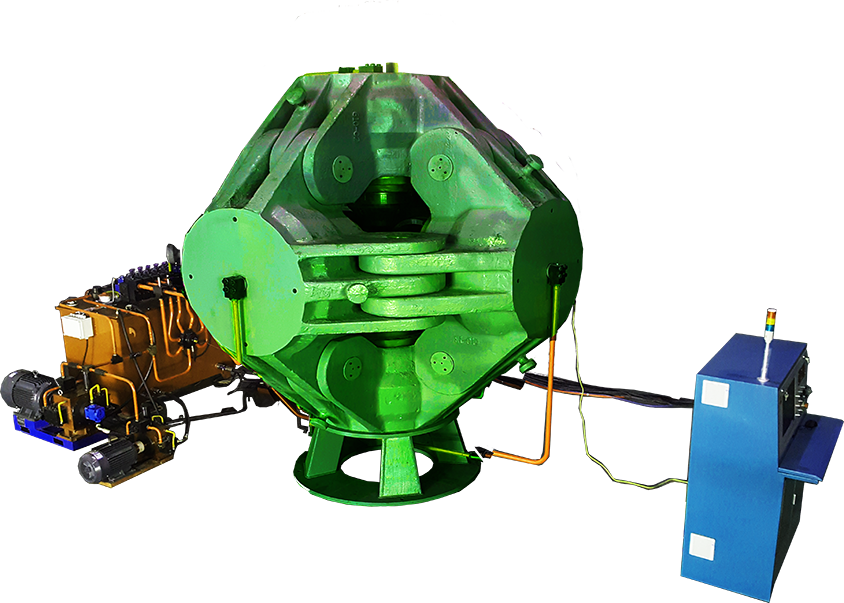

The BT750
High Pressure High Temperature
Cubic Press System
BT750
High Pressure High Temperature
Type IB & Type IIA
Monocrystalline
Diamonds
monocrystalline-diamonds
qubic-press-BT750

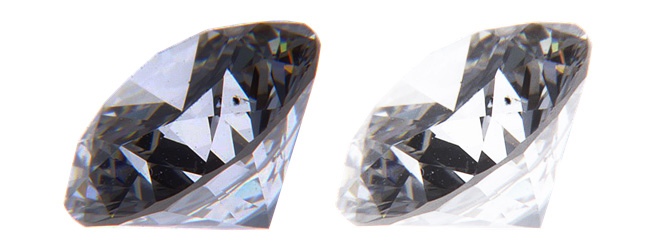

Annealing / Color
Enhancements
annealing
Medical Applications
  • Scalpels - Eye Surgery and Laser Based Coagulation
  • Knives - Ultramicrotome
  • Ultraprecision tool for milling Intraocular Lenses
  • Pharmaceutical - Water Purification
  • Ramen Laser - Window
  • CO2 Laser - Window
  • Radiation Dosimetry
  • Sensor for Magnetocardiography
  • Fluorescence Imaging
  • Medical Grade Nano Diamonds
  • Prosthetic Limbs Coating
  • Water Purification - Disinfection in Multi Stages
    (Refractory Chemicals Electrodes)
Optics
  • Laser windows
  • Infrared windows
  • Lenses
  • X-ray windows
  • ATR units
Industrial
  • Oil and gas drill bits
  • Precision machining
  • Wear resistance
  • Wood Machining
  • Grinding and Polishing
  • General Engineering
  • Road Maintenance
  • Stone and Concreate Processing
  • Mining, Tunneling and Drilling
  • Diamond Composite Materials for Industrial Use
Semiconductors
  • Radar
  • Communication Satellites
  • Diodes
  • Switches
  • Ultra Pure CVD utilizing nitrogen vacancies for Quantum Computing Devices
  • Cellular Communications Towers
  • RF Amplifiers
semiconductors
Semiconductors
  • Radar
  • Communication Satellites
optics
Optics
  • Laser windows
  • Infrared windows
  • Lenses
  • X-ray windows
  • ATR units
thermal
Thermal
  • Heat spreaders
  • Laser sub mount
  • X-ray sub mount
industrial
Industrial
  • Oil and gas drill bits
  • Precision machining
  • Wear resistance
purification
Water Purification
  • Electrodes for water purification
sensors
Sensors
  • Radiation Sensors
  • Fluorescence beam monitors
  • Ionizing radiation detectors
quantum
Quantum Computing
  • For faster data processing and secure communication
medical
Medical
  • Radiation detectors for eye cancer therapy
  • Surgical scalpel
  • Medical Grade Nano Diamonds
1 Nominal Thrust (Single Cylinder) 39.7 MN
2
Working Pressure
12 Mpa
90 Mpa
12 Mpa
90 Mpa
3 Hinge Beam Inner Diameter 750 mm
4 Piston Front Side Diameter 500 mm
5 Opening Height 950 mm
Closing Height 780 mm
6 Three Cylinder Forward Speed 60mm < 50s
7 Quick Return Speed 60mm < 50s
8 Pressure Increase Speed > 0.6MPa/s
9 Pressure Keep Accuracy 3min < 2PMa
10 Max Piston Travel Distance 85 mm
11 Super High-Pressure Pump JB100-9
12 Super High-Pressure Pump (Auxiliary Pump) JB100-2
13 Super High-Pressure Pump Motor Y160M-4-B35 15KW
14 Super High-Pressure Pump Motor Y160M-4-B35 4KW
15 Primary Pump 63SCY14-1B
Auxiliary Pump 40SCY14-1B
Control Pump 10SCY14-1B
16 Primary Pump Motor Y160M-4-B35 15KW
Auxiliary Pump Motor Y160-4-B35 11KW
Control Pump Motor Y112M-4-B35 4KW
17 Capacity Of Electric Heating Transformer 40 KVA
18 Host Machine Weight 52 Ton
19 Dimensions (LxWxH) 2920x2920x3520 (mm)
NUMBER ACCESSORIES LIST QUANTITY REMARK
1 Press Pedestal 1 pc
2 Piston-Base Sub-Assemblies 6 sets
3 Protective Baffle 4 sets
4 Link Pin 12 pcs
5 Link Pin Cover Plates & Bolts Each 24 pcs
6 Travel Mechanism 6 sets
7 Three Way Flange Assemble 6 sets Three way flange, Nose Cone, Deflation Plug, Deflation Nut, Pipe Joint, Joint Nut 6 Pcs Each
8 Anchor Bolts 4 sets
9 Stud Bolt 4 sets
10 Anvils Quantity Based on customer's requirements Price is excluded from FOB price
11 Big pad+Small pad+Steel ring Quantity Based on customer's requirements Price is excluded from FOB price
Electric Control
Number ITEM QUANTITY
1 Electric Control Cabinet 1 Set
2 Transformer 40 KVA 1 Set
3 Copper Line (2x1200mm2) 1 Set
4 Pressure Sensor 1 Pc
5 Current Transformers 1 Pc
6 Valve Line 1 Pc
7 Transformer Connection Valve 1 Pc
